Large Dozer D9 - IMCACAT JAM

Brand: Cat

Tractor

D9

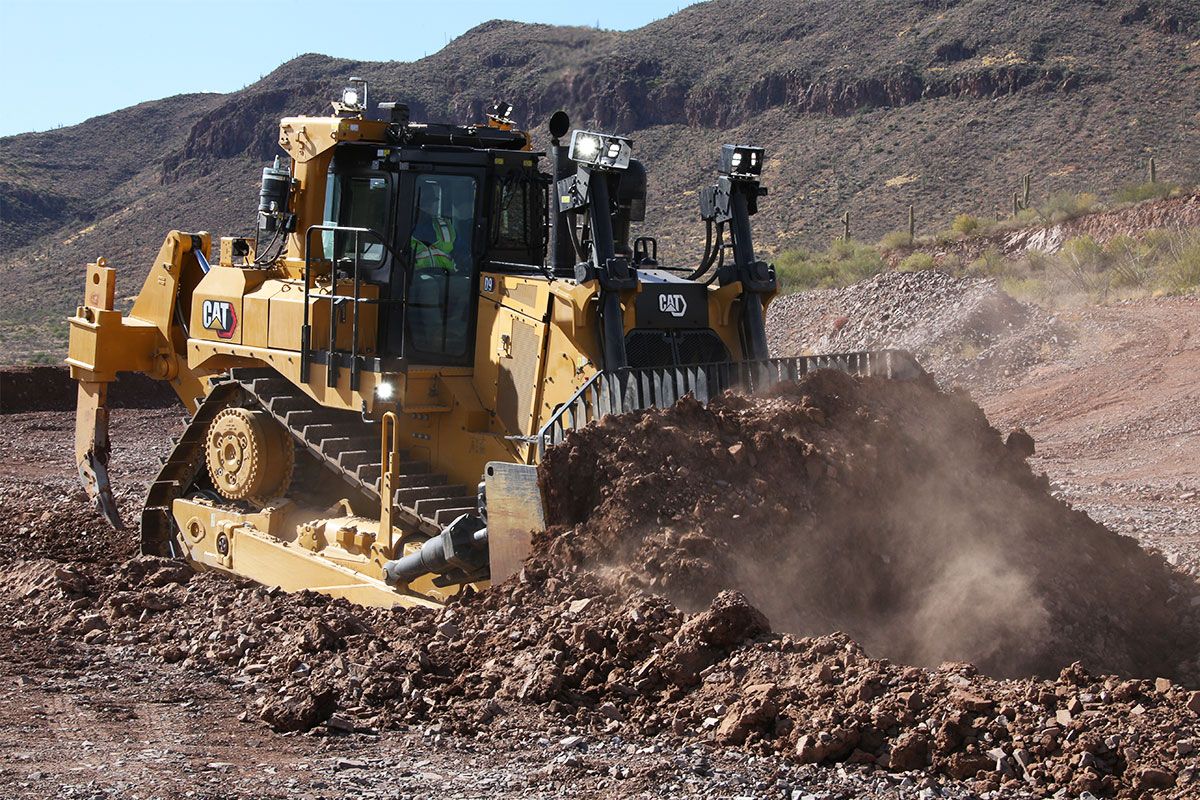

The Cat^®D9 Dozer is a versatile machine designed to be used in a variety of applications, such as ripping overburden, production dozing, stockpiling, winching, site maintenance, fleet support and reclamation. It can be equipped with a number of blade options to meet site-specific needs. A highly reliable and fully integrated Cat machine, the D9’s components work together to ensure top performance, high availability and long life. Features like the new stator clutch torque converter boost efficiency and reduce fuel usage, and a number of onboard technology solutions further increase efficiency and performance. These improvements — and more — make the D9 a dozer that delivers a lower overall cost per unit of material moved.

Add To Compare

The torque converter with stator clutch automatically frees up the stator when torque multiplication is not required under low load, resulting in higher drivetrain efficiency for reduced fuel consumption.
Bogie suspension allows the track to conform to ground conditions, delivering higher traction and less slippage.
Differential steering enables large loads, with fast and smooth maneuvering.

The operator station offers an exceptional viewing area, with a tapered hood, notched fuel tank, and narrow ripper carriage to give the operator a clear line of sight to front and rear work areas.
The optional 360 Vision camera system and in-cab display further enhance visibility.
An optional powered ladder improves access and egress.
Ground-level access, forward-hinging cab door, retention pins on bottom guard and removed lift cylinder grease points provide a greater level of safety for service personnel.

Differential steering provides a tight turning radius and maintains a high ground speed while turning.
The planetary powershift transmission controls permit smooth speed and direction changes with Advanced Productivity Electronic Control System (APECS).
The in-cab touchscreen Information Display is larger, faster, and more powerful with increased memory and intuitive menu structure.
The optional Work Monitor screen collects machine data and provides real-time feedback on machine performance to optimize productivity.
The Dual Tilt option allows the operator to optimize blade pitch angle, improving load control and making it possible to carry material instead of only pushing it.

Differential steering provides a tight turning radius and maintains a high ground speed while turning.
The planetary powershift transmission controls permit smooth speed and direction changes with Advanced Productivity Electronic Control System (APECS).
The in-cab touchscreen Information Display is larger, faster, and more powerful with increased memory and intuitive menu structure.
The optional Work Monitor screen collects machine data and provides real-time feedback on machine performance to optimize productivity.
The Dual Tilt option allows the operator to optimize blade pitch angle, improving load control and making it possible to carry material instead of only pushing it.

Product Link™ Elite enables the remote transmission of information about the location, operation and condition of your equipment.
Automated Blade Assist (ABA) (optional) increases efficiency while reducing operator workload, making use of preset blade pitch positions for the load, carry and spread portions of the cycle.
AutoCarry™ (optional) automates blade lift to maintain desired blade load, improve load consistency and reduce track slip.
Automatic Ripper Control (optional) automatically controls ripper height to limit track slip, reducing operator fatigue.
Optional Cat MineStar™ Command for dozing offers multiple levels of remote-control operation.
